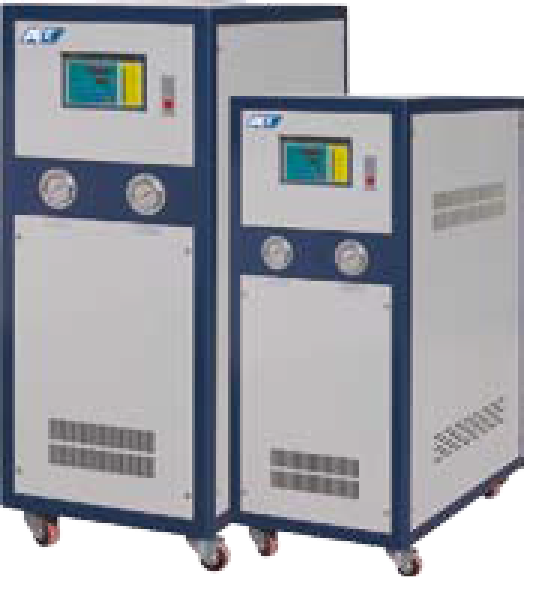

ACE Series Air-Cooled Chillers
Widely applied in the cooling of plastic processing mold, electric coating liquid, vacuum coating machine and bath tank, also can be used as industrial supersonic cleaning machine. It can effectively decrease the vitalization of cleaning solvent to cut down production cost.
| Item | Model | ACE-1A | ACE-3A | ACE-5A | ACE-8A | ACE-10A | ACE-12A | ACE-15A | ACE-20A | ACE-30A | ACE-60A |
| Cooling Capacity | kcal/Hr 50Hz/60Hz |
2400 2600 |
6680 7880 |
11000 13090 |
16168 19078 |
22500 26600 |
27692 32676 |
32852 38765 |
45000 53170 |
65704 77530 |
131580 155264 |
| BTU 50Hz/60Hz |
9523 10316 |
17619 20788 |
43648 51940 |
64154 75700 |
89280 105548 |
109881 129600 |
130300 153819 |
178500 210900 |
260713 307639 |
522109 616087 |
|
| Power Supply | Volt | 220 V, 50/60 Hz | 3 Phase 380 V, 50/60 Hz | ||||||||
| Compressor Motor | kW | 0.75 | 2.25 | 3.75 | 6 | 7.5 | 9 | 11.25 | 15 | 22.5 | 45 |
| Condenser Air Flow Rate | CFM | 640 | 1630 | 3189 | 4620 | 6482 | 7895 | 9370 | 12850 | 18740 | 37600 |
| Water Tank Capacity | Liter | 28 | 55 | 70 | 150 | 180 | 220 | 350 | 520 | 550 | 880 |
| Water Pump | kW | 0.25 | 0.37 | 0.75 | 1.5 | 2.25 | 3.75 | 5.63 | |||
| ICE Water Flow Rate | L/Min | 8 9 |
22 26 |
37 44 |
54 64 |
78 89 |
93 109 |
110 130 |
150 177 |
218 258 |
439 518 |
| ICE Water Pipe Size | Inch | 1/2 " | 3/4 " | 1 " | 2 " | 2 1/2 " | 3 " | ||||
| Size Length | mm | 635 | 940 | 1016 | 1423 | 1423 | 1700 | 1880 | 2184 | 2387 | 3556 |
| Size Width | mm | 432 | 559 | 559 | 813 | 813 | 915 | 915 | 1016 | 1016 | 2032 |
| Size Height | mm | 762 | 1181 | 1283 | 1537 | 1537 | 1676 | 1778 | 2058 | 1778 | 1879 |
| Machine Weight | kg(W/A) | 60 | 130 | 160 | 320 | 410 | 460 | 595 | 720 | 900 | 1700 |
